AUTOMATIC BRIDGE CUTTING MACHINE(CLASSICAL MODEL)ZDH-400BX(360º) Suppliers

AUTOMATIC BRIDGE CUTTING MACHINE(CLASSICAL MODEL)ZDH-400BX(360º)

AUTOMATIC BRIDGE CUTTING MACHINE(CLASSICAL MODEL)ZDH-400BX(360º)
  • Structure Characteristics

  • Technical Data

  • Detail Description

  • Processing Photos

  • Work Video

  • How To Order

  • FEATURE AND FUNCTION

    The "HIWIN" linear guide is used in the guide rail of this equipment.

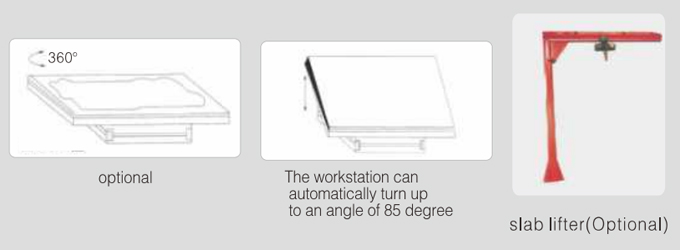

    Using laser to set the position, frequency conversion control feeding to realize stepless speed regulation, Machine head lift, worktable turning & rotation and positioning all use hydraulic transmission.

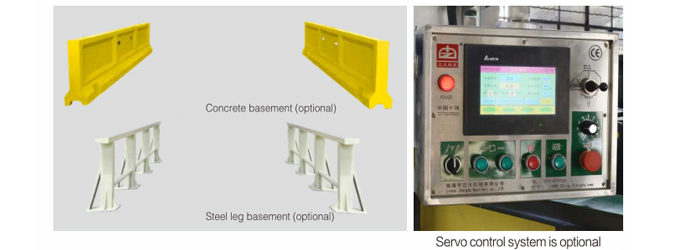

    PLC, frequency converter, touch screen, encoder, electromagnetic valve and other core components all use famous brand products to realize automatic cutting in the whole process.

    This machine is suitable for high value, large size and multi specification plate cutting.





  • MAJOR TECHNICAL PARAMETERS

    Item ZDH-400X(360º)
    Max.processing dimension ×2000×60mm
    Workstation rotation size 360º
    Saw blade diameter Φ350-Φ400mm
    Main engine power 15kw
    Total power 20.2kw
    Outline dimension 6000×4500×2800mm
    Weight 5T
    Water consumption 3m³/h
    • 1.Contact us

      Contact us by phone/ whatsApp / skype / viber / wechat / email, we will offer you the most suitable quotation

    • 2.Visit

      Check our machines and equipment in our workshops, discuss details and specifications for the production line and customer’s project.We’re also able to arrange the visiting to domestic customer factory to check running line

    • 3.Drawings

      Engineers will design the particular production lines according to customer’s requirements and factory layout; make sure the line fits the workshop perfectly.

    • 4.Finalize contract

      Finalize details for price, payment, shipping time, and sign the contract.

    • 5.Producing

      Start the production immediately the first payment arrives, the sales follow up the production progress and keep customer updated.

    • 6.Inspection

      Assemble the line in our workshop for customer inspection, then pack the whole line according to customer’s requirements.

    • 7.Shipment

      Load the well-packed machines into containers; arrange the shipment by long-cooperated shipping agent, ship to the final port as customer directed. Sales from HG will track the whole procedure, solve problem if there is any.

    • 8.Install

      Send engineers and technicians to customer’s factory, install the whole line, commission the running, make the sure the line is correctly assembled.

    • 9.Train

      Engineers provide the recipe, according to local material condition and their experience. Technicians will also train the workers up until they learn well to operate the machines.

    • 10.After-sale service

      Anytime,any problem,our sales and engineers will try our best to help to solve it.You can contact us by phone/ whatsApp / skype / viber / wechat / email.Our engineers will also go to the customers factory anytime if necessary.
