AUTOMATIC CUTTING MACHINE ZDH-400X(90º)

AUTOMATIC CUTTING MACHINE ZDH-400X(90º)

AUTOMATIC CUTTING MACHINE ZDH-400X(90º)
  • Technical Parameter

  • Structure

  • Processing photos

  • Processing video

  • MAJOR TECHNICAL PARAMETERS

    Item ZDH-400X(90º)
    Max.processing dimension 3200×2000×100mm
    Workstation rotation size 90º/360º
    Saw blade diameter Φ350-Φ450mm
    Main engine power 15kw
    Total power 20.2kw
    Outline dimension 6000×4500×2800mm
    Weight 4.5T
    Water consumption 3m³/h
  • FEATURE AND FUNCTION

    This equipment adopts guide movement with highly precision grinding and manual scraping, the main parts are processed by heat treatment, the main beam and side beam are smoothed by oil immersed lubricating.

    It adopts by infrared to cut, the cutting speed by inverter control to achieve stepless adjustment. the head movements, table title up, rotation and position are used hydraulic transmission to move. and the main parts are imported with high quality, it can be cut by manually and fully automatic easily.

    It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning.

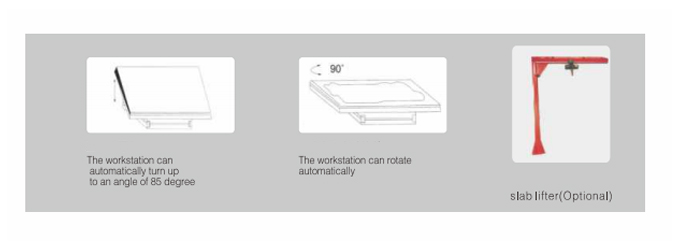

    The worktable is adopted at 90 degree rotation, and position at 360 degree, and there is no effect of the environment in stable using.

    This machine is made of good steel with high working accuracy and moving stable with long service life.

    It is applicable to cut the valuable and large sized stone board for many specifications.









  •

Zhejiang Haigong Machinery Co., Ltd. is well-known China AUTOMATIC CUTTING MACHINE ZDH-400X(90º) suppliers and AUTOMATIC CUTTING MACHINE ZDH-400X(90º) company, set up in 1978 and it is located in TAIZHOU, a coast city in the Yangtze delta with an advanced economy and convenient transportation. Now with an area of 80,000 square meters, intelligent office building and 50,000 square meters modern standard factories contain welding, casting and another three production areas. It has become a high technology enterprise at the command of research, manufacture, selling and after-sales service to produce stone machinery professionally. We were awarded as one of the Top ten of CISE Chinese stone machinery, and also one of the ten top brands among Chinese stone machinery, and also passed CE certification and so on.
We established our production line to introduce the world-class production equipment for planer, grinding rails, large floor lathes, horizontal boring machine, CNC lathe, and other major processing equipment are from famous international equipment suppliers. Our major products are infrared bridge cutting machine, PLC automatic profile cutter, bridge edge grinding machine, bridge edge cutting machine, edge cutting and grinding machine and also arc edge polishing machine, line polishing machine, wholesale AUTOMATIC CUTTING MACHINE ZDH-400X(90º) and so on which made by our under-company: ZHEJIANG HAIGONG MACHINERY CO.,LTD” with all the brand of ZHENGDA”.
