    This equipment adopts guide movement with highly precision grinding and manual scraping, the main parts are processed by heat treatment, the main beam and side beam are smoothed by oil immersed lubricating.

    It adopts by infrared to cut, the cutting speed by inverter control to achieve stepless adjustment. the head movements, table title up, rotation and position are used hydraulic transmission to move. and the main parts are imported with high quality, it can be cut by manually and fully automatic easily.

    It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning.

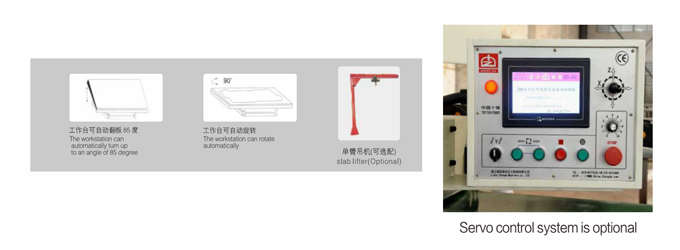

    The worktable is adopted at 90 degree rotation, and position at 360 degree, and there is no effect of the environment in stable using.

    This machine is made of good steel with high working accuracy and moving stable with long service life.

    It is applicable to cut the valuable and large sized stone board for many specifications.





    Item ZDH-450X(90º) ZDH-600X(90º)
    Max.processing dimension 3200×2000×100mm 3200×2000×150mm
    Workstation rotation size 90º/360º 90º/360º
    Saw blade diameter Φ350-Φ450mm Φ350-Φ600mm
    Main engine power 17kw 18.5kw
    Total power 22.2kw 23.7kw
    Outline dimension 6000×4500×2800mm 6000×4500×5050mm
    Weight 5T 5.5T
    Water consumption 3m³/h 3m³/h
