ARC EDGE POLISHING MACHINE ZD-1200 Suppliers

ARC EDGE POLISHING MACHINE ZD-1200

ARC EDGE POLISHING MACHINE ZD-1200

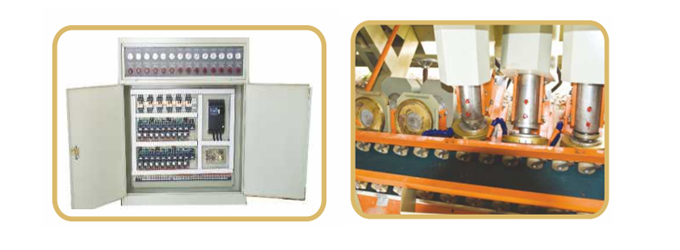

  • Structure Characteristics

  • Technical Data

  • Detail Description

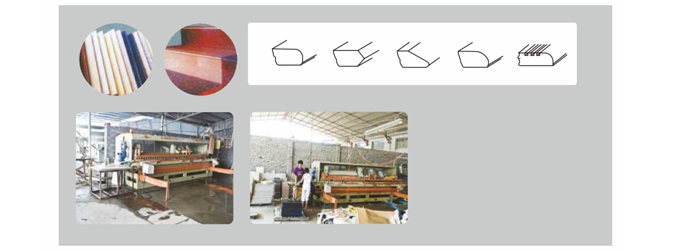

  • Processing Photos

  • Work Video

  • How To Order

  • FEATURE AND FUNCTION

    This machine is for ceramic tiles and stone processing with more reliable performance. It can finish allthe process for stairs tile and skirting tile in one-time with the brightness to reach 90 degree in processing. It can also do 45 degree bevel polishing. This model is easy to operate and process automaticaly with low cost and high efficiency. it is achieved high praise from user's both in china and abroad market.

    The conveying belt is imported from italy by famous brand"sampla' with long using life.









  • MAJOR TECHNICAL PARAMETERS

    Item ZD-1200
    Number of conveying belt 1(slip)
    Number of polishing head 14(Pieces)
    Dia of the polishing head Φ100(mm)
    Number of chamfering wheel 5(Pieces)
    Dia of chamfering wheel Φ200(mm)
    Number of notching disc 3-4(Pieces)
    Dia of notching disc Φ150mm
    Working width 100-1200mm
    Working thickness 6-26mm
    Polishing speed 2-6m/min
    Total power 32kw
    Water consumption 5m³/h
    Power consumption 20kw/h
    Air consumption 55L/min
    Outline dimension 6000×2200×1700mm
    Weight 5T



    • 1.Contact us

      Contact us by phone/ whatsApp / skype / viber / wechat / email, we will offer you the most suitable quotation

    • 2.Visit

      Check our machines and equipment in our workshops, discuss details and specifications for the production line and customer’s project.We’re also able to arrange the visiting to domestic customer factory to check running line

    • 3.Drawings

      Engineers will design the particular production lines according to customer’s requirements and factory layout; make sure the line fits the workshop perfectly.

    • 4.Finalize contract

      Finalize details for price, payment, shipping time, and sign the contract.

    • 5.Producing

      Start the production immediately the first payment arrives, the sales follow up the production progress and keep customer updated.

    • 6.Inspection

      Assemble the line in our workshop for customer inspection, then pack the whole line according to customer’s requirements.

    • 7.Shipment

      Load the well-packed machines into containers; arrange the shipment by long-cooperated shipping agent, ship to the final port as customer directed. Sales from HG will track the whole procedure, solve problem if there is any.

    • 8.Install

      Send engineers and technicians to customer’s factory, install the whole line, commission the running, make the sure the line is correctly assembled.

    • 9.Train

      Engineers provide the recipe, according to local material condition and their experience. Technicians will also train the workers up until they learn well to operate the machines.

    • 10.After-sale service

      Anytime,any problem,our sales and engineers will try our best to help to solve it.You can contact us by phone/ whatsApp / skype / viber / wechat / email.Our engineers will also go to the customers factory anytime if necessary.
